Dewatering Pumps
Miura HP10

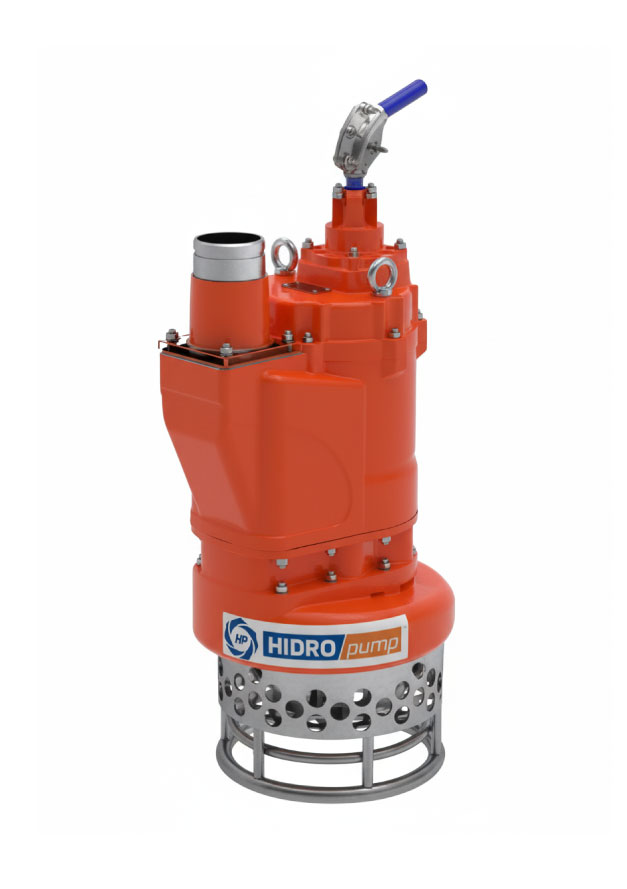

Electric submersible drainage pump, available in various aluminum and stainless-steel alloys. For use in mining, power plants and other industries that handle abrasive solids and water.
Material: Standard
Hz: 50Hz
Unit: Ft / gpm
Power: HP10
Data sheet:
Additional information
Data Sheet
Materials
Classification
Submersible electric pump
Electric motor
Three – phase squirrel cage motor
Speed: 2950 RPM
Insulation
class : H
Mechanical seals/seals
Double mechanical seal in oil chamber and water.
Rotary seal material material: silicon carbide
Stationary seal: silicon carbide
Elastomers: Viton.
Discharge connection
3” H – 4” N. (*)
Motor protection
Three phase squirrel cage motor Protection: IP 68
Cable
4G10 + 2×1.5mm2, 20m (*) This pump must be connected to an external electrical cabinet with adequate protections.
Bearings
Deep groove ball bearing C3.
Limitations
Maximum submersion : 20
Maximum liquid temperature: 40 C (104 F)
Liquid pH range: 5 – 8
