High Head Pressure

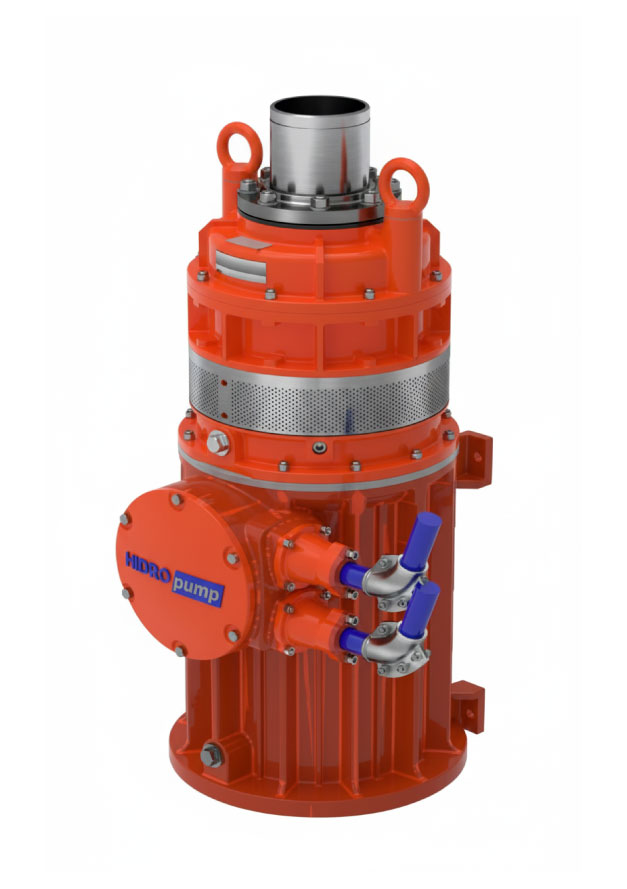

lanzador HH
Electric submersible drainage pump, available in various aluminum and stainless-steel alloys. For applications in mines,power plants and other industries that handle abrasivesolids and water.
Material: Stainless Steel
Hz: 60Hz

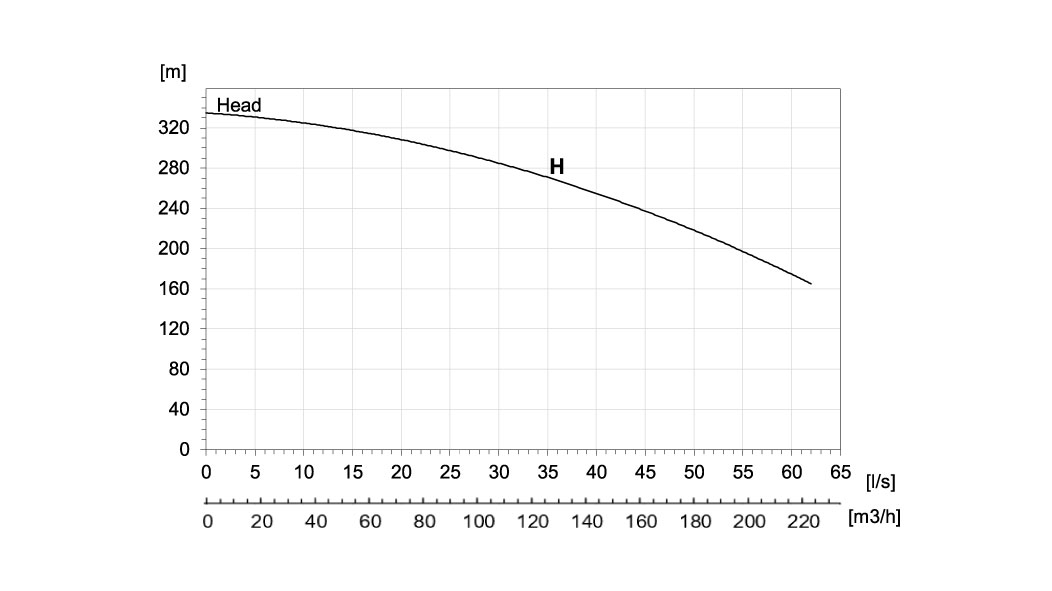

Unit: M / m3/h
Power: HP30
Data sheet:
Additional information
Data Sheet
Materials
Classification
Submersible electric pump
Electric motor
Three-phase squirrel cage motor
Speed: 2950 RPM
Insulation class: H
Start: Direct
Max.number of starts per hour: 12
Mechanical seals
Double mechanical seal in oil chamber and water.
Rotary seal material: silicon carbide.
Stationary seal material: silicon carbide.
Elastomers: Viton.
Discharge connection
6” HH
Motor protection
Termocontactos en el bobinado Protección: IP 68
Cable
4Gx50mm2+ 2×1.5mm2, 20m(*)
Limitations
Maximum submersion: 20 m.
Maximum liquid temperature: 40 °C (104°F).
Liquid pH range: 5 – 8.
