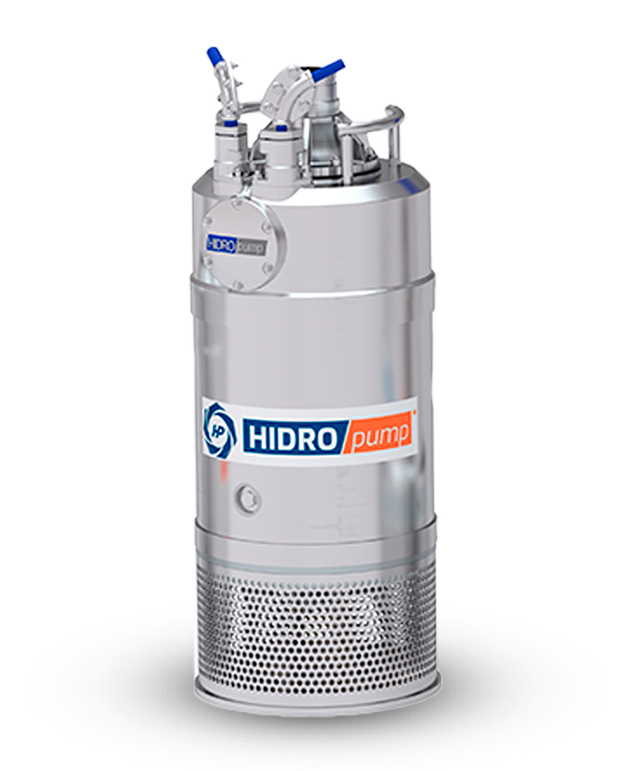

Electric submersible drainage pump, available in various aluminum and stainless-steel alloys. For use in mining, power plants and other industries that handle abrasive solids and wate
Data sheet:
Classification
Submersible electric pump
Electric motor
Three-phase squirrel cage motor
Speed: 3550 RPM
Insulation class: H
Start: Direct/Star-Delt
Max. number of starts per hour: 12
Mechanical seals
Double
mechanical seal in oil chamber and water
Rotary seal material: silicon carbide.
Stationary seal material: silicon carbide.
Elastomers: Viton.
Discharge connection
4” H – 6” N. (*)
Motor protection
Thermo-contacts in the winding Protection: IP 68.
Cable
Star-Delta: 2 cables 4G10+ 2×1.5mm2, 20m(*)
Direct: 1 cable 4G25+ 2×1.5mm2, 20m(*)
This pump must be connected to an external electrical cabinet
with adequate protections.
Bearings
Lower: Double angular contact ball bearing C3.
Upper: Deep groove ball bearing C3.
Limitations
Maximum submersion: 20 m
Maximum liquid temperature: 40 °C (104°F).
Liquid pH range:2 – 11.
