Slurry pumps

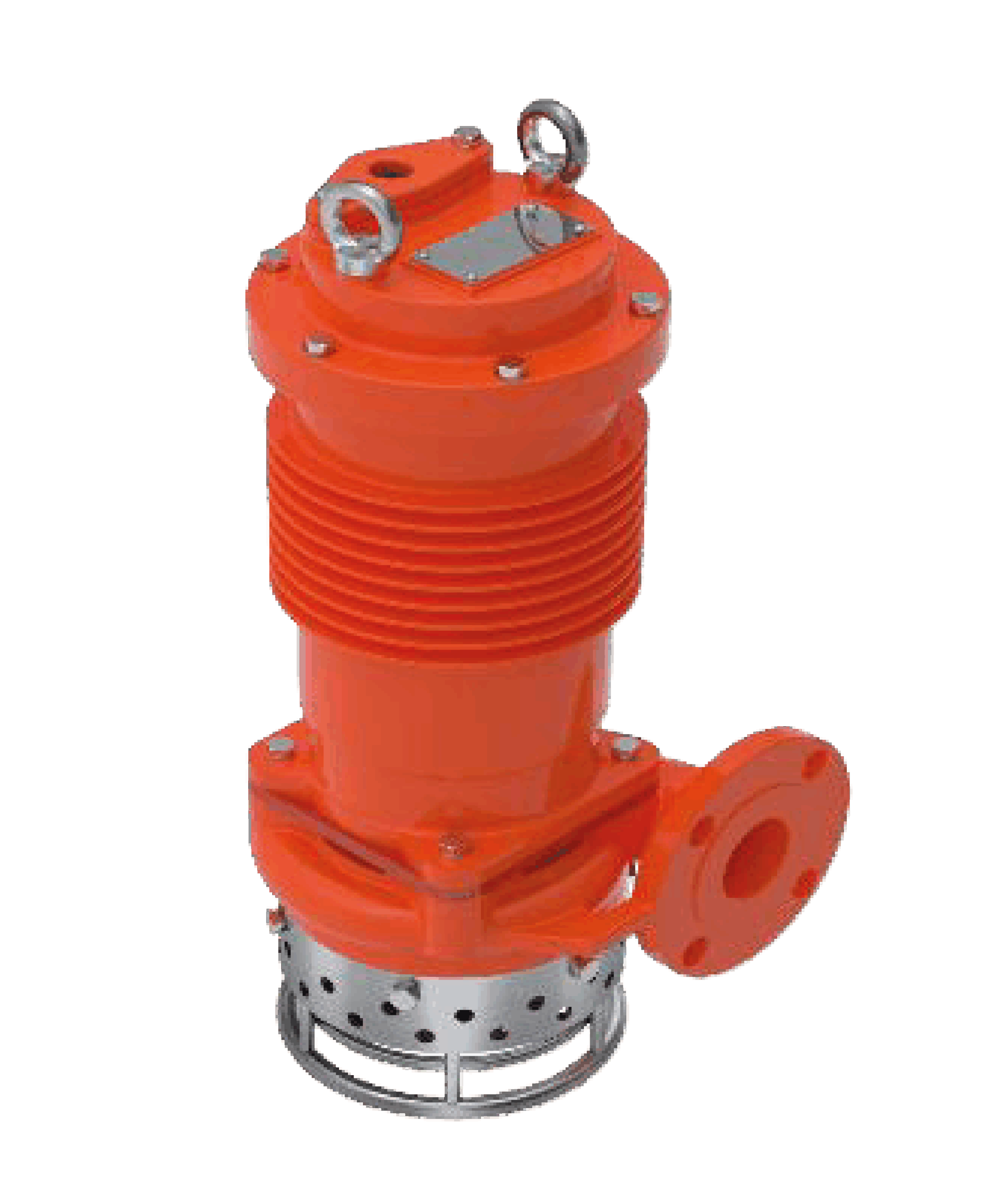

Bronco 66MD
Electric submersible slurry pump, available in various cast iron and stainless-steel alloys. For operation in mines and industries that handle abrasive solids and slurries.
Material: Standard
Hz: 50Hz
Unit: Ft / gpm
Power: HP63
Data sheet:
Additional information
Data Sheet
Materials
Classification
Submersible slurry pump
Electric motor
Three-phase squirrel cage motor
Speed: 1450 RPM
Insulation class: H
Start: Direct
Mechanical seals
Double mechanical seal in the oil chamber.
Rotary seal material: silicon carbide.
Stationary seal material: silicon carbide.
Elastomers: Viton.
Discharge connection
8”. (*)
Motor protection
Thermo-contacts in the winding Protection: IP 68
Cable
4G35 + 2×1.5mm2, 20m (66 ft) (*)
This pump must be connected to
an external control panel with
adequate protection
Limitations
Maximum submersion: 20 m (66 ft)
Maximum liquid temperature: 40 °C (104 °F)
Liquid pH range: 6 – 11.
50HZ | MD |
---|---|
Power, HP (KW) | 63(47) |
Voltage (V) | 380-500 |
Nominal Current (A) | 117-89 |
Weight, lb (kg) | 2425(1100) |
Max. height, inch (mm) | 71(1805) |
Max. diameter, inch (mm) | 34.5(876)
|
Discharge, inch (mm) | 8(200) |
Strainer opening Ø, inch (mm) | 1.4(36) |
Cover | Nodular Cast iron |
Strainer | Carbon Steel |
Impeller | High Chrome Steel |
Agitator | High Chrome Steel |
Wear plate | High Chrome Steel |
Cover suction | Nodular Cast iron |
Casing/volute | Nodular Cast iron |
Shaf | Stainless Steel |
Screws/Nuts | Stainless Steel |
